Audio Excellence

It is common sense that a power amplifier driven into clipping does not sound as good as a power amplifier operating below its maximum power. So it only makes sense to provide significant headroom by using a power amplifier capable of delivering both very high voltages and current.

Ought to its advanced class TD power supply, the Quattro 06 is capable of delivering both high current and high voltage on 4 channels simultaneously. Its world-class performance makes it the ideal powerhouse for Home Theater installations.

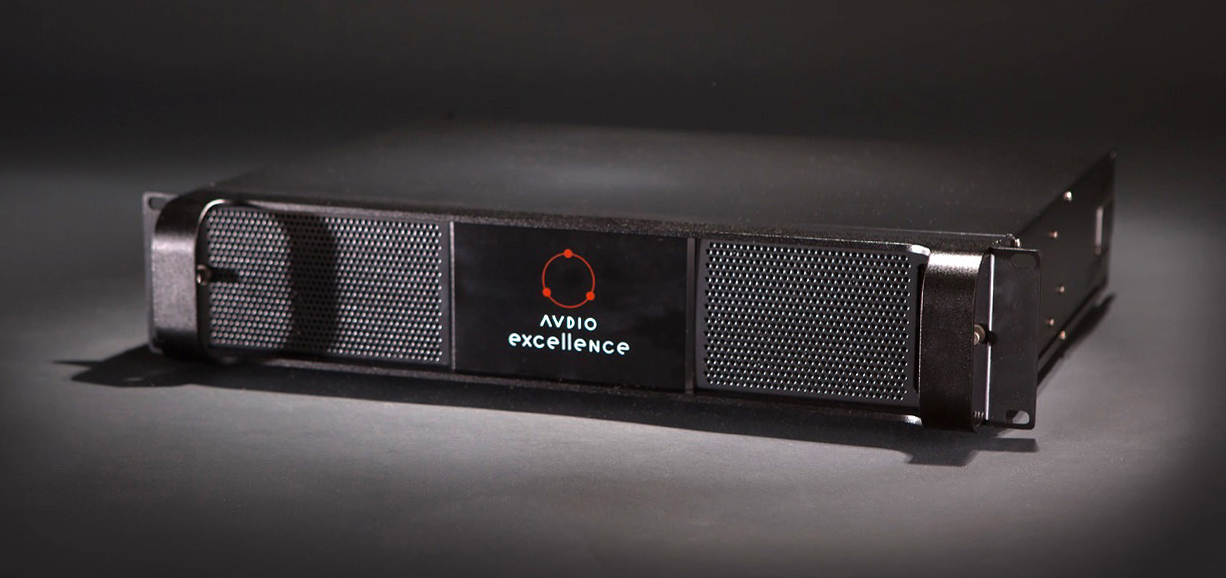

Quattro 06

Ought to its advanced class TD power supply, the Quattro 06 is capable of delivering both high current and high voltage on 4 channels simultaneously. Its world-class performance makes it the ideal powerhouse for Home Theater installations.

  1. 20 Hz- 34 kHz +/- 0.3 dB
  2. >112 dBA
  3. <0.1%
  4. > 70 dB
  5. Silent fans
  6. Selectable from 23 dB to 44 dB
  7. TD
  8. 20 kΩ
  9. 4 channels
  10. 4 x 600 W into 8 Ohms
  11. 4 x 1200 W into 4 Ohms
  12. 2 x 2400 W into 8 Ohms in bridge mode
  13. 2 U

DSP Quattro 06

Designed for ultimate performance and flexibility with extreme ease of installation, the DSP Quattro 06 is combining a digital active crossover with a 4 channel high-power amplifier. Any of the 4 input signals can be routed to any of the outputs or summed on any single output making this is the ideal solution for powering the L,C,R channel speakers with a summed channel bass extension.

  1. 24/48 D/A converters & processor
  2. Full PC parameters control
  3. 20 Hz- 20 kHz +/- 0.25dB
  4. >110 dB
  5. <0.01%
  6. Individual on all inputs and outputs
  7. 48 kHz, 48 bit floating point
  8. 1 x USB; 2 RS 485
  9. Balanced 100 Ω
  10. Balanced 20 kΩ
  11. 6-band parametric; lo-shelf; hi-shelf
  12. range 0 to 1000 ms
  13. -12 dB to + 12 dB
  14. 6-band parametric; lo-shelf; hi-shelf
  15. Bessel, Butterworth; LR
  16. 12, 18, 24, 32, 48 dB/Octave
  17. Any of each input can be assigned to each output

  1. 4 x 600 Watts into 8Ω, 4 x 1,200 Watts into 4Ω
  2. 20 Hz- 20 kHz +/- 0.5 dB
  3. >110 dBA
  4. <0.1%
  5. > 70 dB
  6. Silent fans
  7. TD
  8. 4 channels
  9. 4 x 600 W into 8 Ohms
  10. 4 x 1200 W into 4 Ohms
  11. 2 x 2400 W into 8 Ohms in bridge mode
  12. 2 U
  13. 4 x Speakon 2

Quattro 02

The Quattro 02 has the same design as the 06, but with a lower power rating for less demanding applications like small systems surround channels or for ceiling channels.

  1. 20 Hz- 34 kHz +/- 0.3 dB
  2. >112 dBA
  3. <0.1%
  4. > 70 dB
  5. Silent fans
  6. Selectable from 23 dB to 44 dB
  7. TD
  8. 20 kΩ
  9. 4 channels
  10. 4 x 240 W into 8 Ohms
  11. 4 x 400 W into 4 Ohms
  12. 2 x 800 W into 8 Ohms in bridge mode
  13. 2 U
  • Loudspeakers

    Vertex and Raijuu are two complementary range of loudspeakers. The Vertex are small size, high efficiency loudspeakers of the limited range type: They operate only at frequencies higher than 100 Hz. Raijuu are subwoofers operating below 100 Hz to complement the Vertex.

    See all loudspeakers
  • Acoustically transparent screens

    Audio Excellence audio products are designed to be part of a complete Home Theater system, with the L,C,R front loudspeakers located in the right place: Behind the projection screen. Check out your next projection screen for ultimate performance on the Screen Excellence website.

    Discover Screen Excellence
